Gator-Mouth Ladle Metallurgical Furnace (LMF) in Steelmaking

  • Writer: Nikita P
    Nikita P
  • Nov 18, 2025
  • 2 min read

In the steelmaking process, the job is not over once the scrap is melted in the EAF. To meet today’s quality standards, many steel-producing shops rely on an additional furnace, known as the Ladle Metallurgical Furnace (LMF), to polish and refine the molten steel before it’s sent to be cast into its final form. At EAFab, we design and manufacture components for LMF systems, featuring a unique roof design element, distinct from any other competitor, known as the Gator-Mouth.


Before we dive in, what is an LMF?

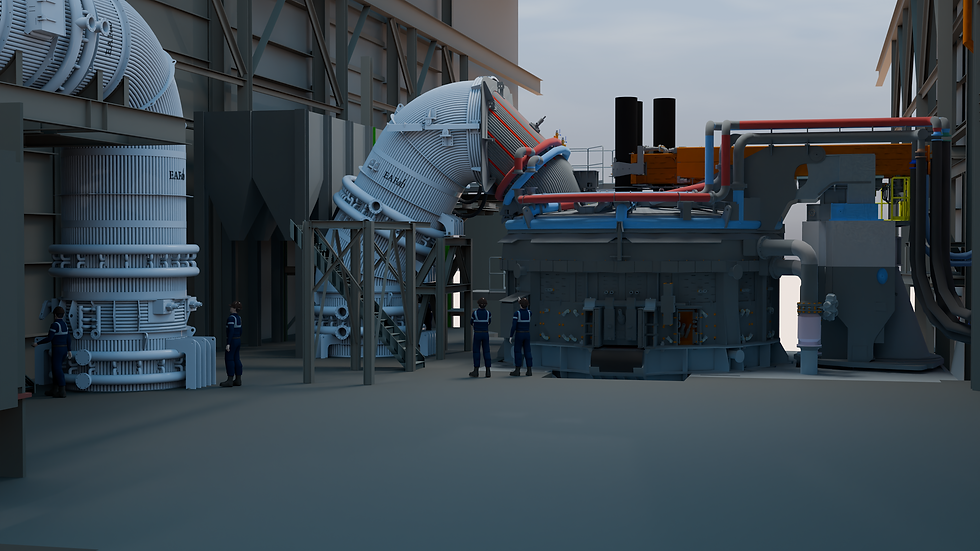

Ladle Metallurgical Furnace with A Gator Mouth. Steelmaking. North America. EAFab Steel Corp
While the EAF melts down the raw materials, the LMF refines the chemistry and controls the steel's temperature.

A Ladle Metallurgical Furnace (LMF) functions include...

  • Add or modify alloys

  • Remove impurities from the molten steel

  • Stir the mixture to ensure uniformity

  • Adjust the steel’s temperature



What Is a Gator Mouth?


LMF. Steelmaking. North America. EAFab Corp. Ladle Metallurgical Furnace with Gator Mouth
The term “gator mouth” specifically refers to EAFab's unique skirt design, which features a fixed point and a movable point, enabling easy in-and-out transport of the ladle.

Why Use a Gator Mouth LMF?


  1. Improved Access and Mobility - The moving skirt design allows for effortless movement of the ladle when rolling in and out of the LMF station, completely eliminating the time-consuming need to lift and lower the entire roof through a chain system. With the Gator-Mouth, your roof can simply open the moveable skirt from the side, and roll into position with easy access.

  2. Gas Extraction - The steel refining process continues to release hot gases. Since the Gator-Mouth design allows for the roof to stay stationary, it allows for a pseudo-4th hole and guidance into the Off-Gas System.

  3. Electrode Clearance - The center stack's elongated shape gives more vertical space for the electrodes to enter the ladle without issues, while maintaining structure and strength throughout the furnace.


Learn more about our Gator-Mouth design here.



Final Thoughts

In steelmaking, every detail matters. The LMF with our "Gator-Mouth" design is an engineering choice that significantly impacts quality, efficiency, and process control. Whether you're retrofitting an existing furnace or designing a new structure, EAFab has the experience and equipment to support your operation from the ground up.



The contents of this blog were written, rendered, and produced by a Student Intern from our STEAM Program at Upper Saint Clair High School.
